6.3 Speakers

Marine-grade coaxial speakers with integrated RGB LED lighting for front dash and rear roll bar positions.

Front Half-Door Speakers

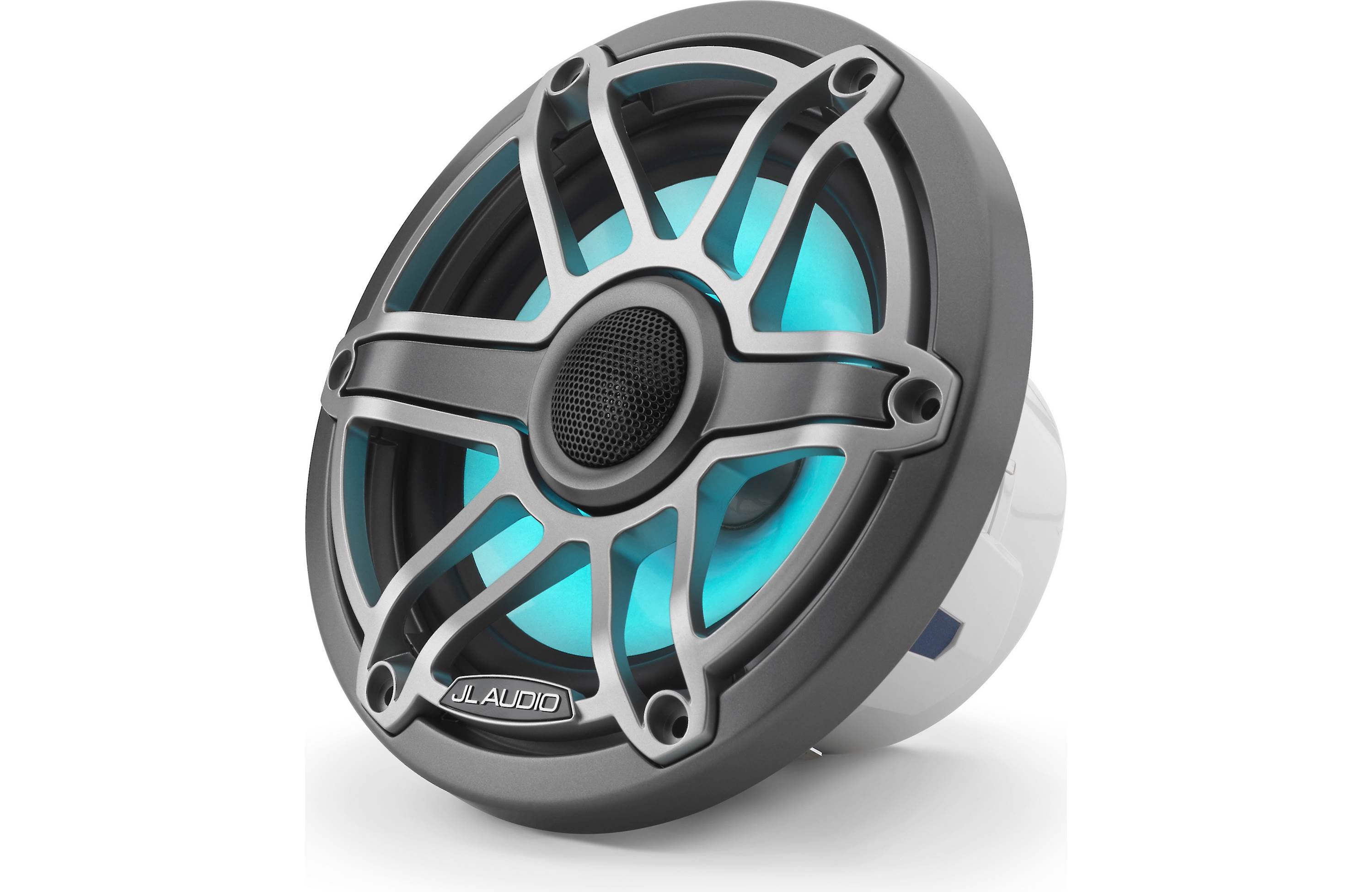

JL Audio M6-650X-S-GmTi-i

Type: 6.5" 2-Way Coaxial Marine Speaker

Model: M6-650X-S-GmTi-i

Manufacturer: JL Audio

Product Page: M6-650X-S-GmTi-i

Quantity: 2 (pair)

Mounting: In-door, custom Gatekeeper Offroad half-doors (6.5" cutouts)1

Power Source: Amplifier Channels 3+4

Front Speaker Specifications

Spec Value
Power Handling 75W RMS @ 4Ω
Amplifier Output 150W RMS (2:1 headroom)
Impedance 4Ω
Frequency Response 55-25,000 Hz (±3dB)
Sensitivity 89.5 dB @ 1W/1m
Tweeter 0.8" silk dome (integrated)

Front Speaker Features

  • Integrated 0.8" pure silk dome tweeter (no separate install)
  • Multi-order 2-way passive crossover (built-in)
  • Automatic solid-state tweeter protection
  • Transflective RGB LED lighting
  • Mica-filled polypropylene woofer
  • Gunmetal trim ring with titanium sport grille

Rear Roll Bar Speakers

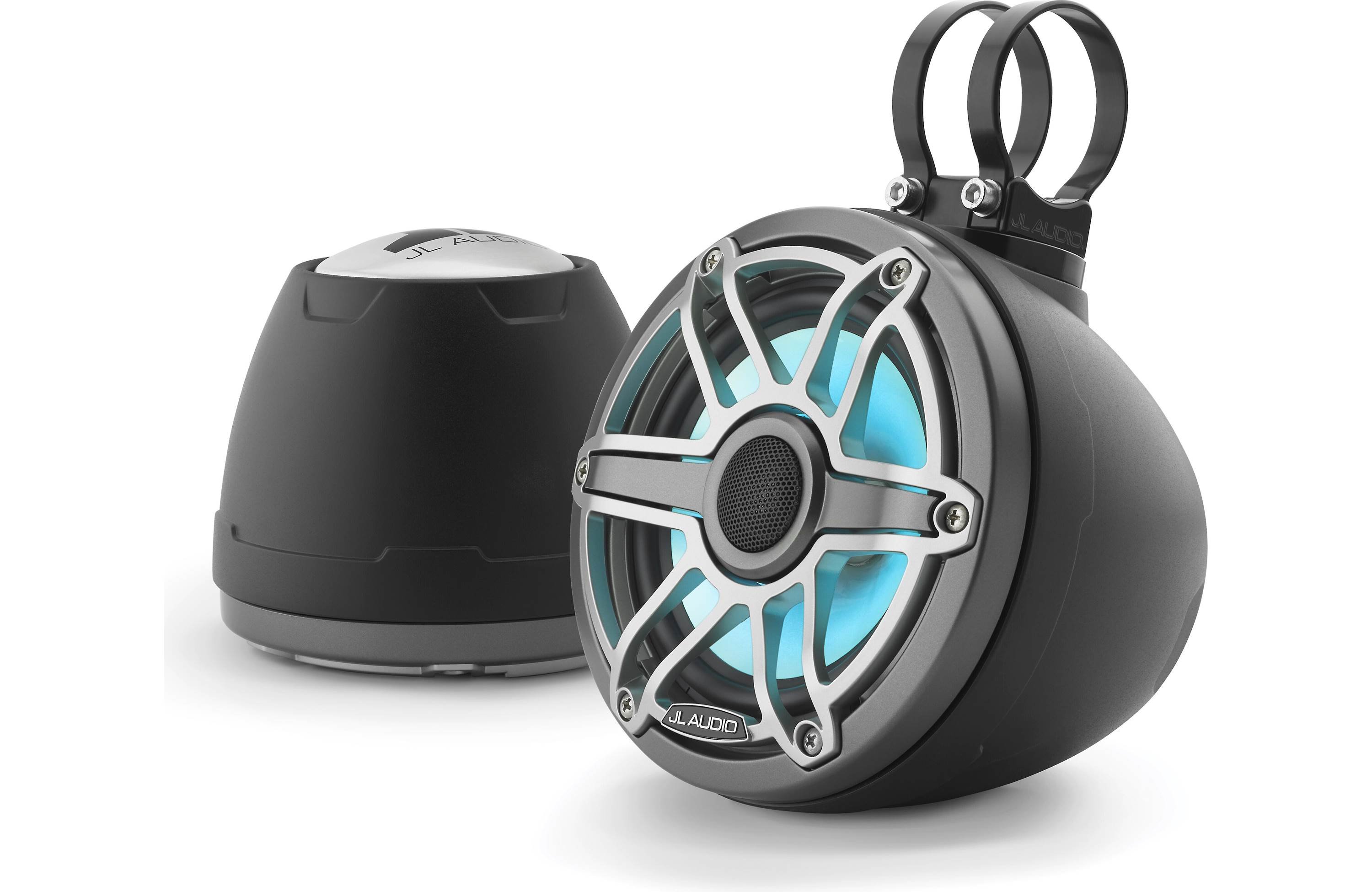

JL Audio M6-650VEX-Mb-S-GmTi-i

Type: 6.5" 2-Way Enclosed Marine Tower Speaker

Model: M6-650VEX-Mb-S-GmTi-i

Manufacturer: JL Audio

Product Page: M6-650VEX-Mb-S-GmTi-i

Quantity: 2 (pair)

Mounting: Roll bar/cage (wakeboard tower style clamps)

Power Source: Amplifier Channels 5+6

Rear Speaker Specifications

Spec Value
Power Handling 75W RMS @ 4Ω
Amplifier Output 150W RMS (2:1 headroom)
Impedance 4Ω
Frequency Response 100-25,000 Hz
Sensitivity 89.5 dB
Dimensions 7-1/16" × 7-5/16" × 6-1/4"

Rear Speaker Features

  • Built-in RGB LED lights
  • 3/4" silk dome tweeters
  • Mica-filled polypropylene woofers
  • Enclosed weather-resistant design
  • Roll bar clamp mounting

Wiring

All speakers use JL Audio XM-WHTMFC integrated cable:

Wire Gauge Function
Speaker leads 16 AWG OFC Audio signal
LED leads 20 AWG OFC RGB + common

Single cable run per speaker carries both audio and LED control.

Outstanding Items

TBD tracker unavailable

Could not reach the GitHub issues API at build time (network or rate limit). Set GITHUB_TOKEN to raise the limit.

  1. Front speakers mount in custom Gatekeeper Offroad half-doors (in-door location, not dash end caps or kick panels). Owner decision, 2026-06-03. ↩
