4.1 Ditch Lights¶

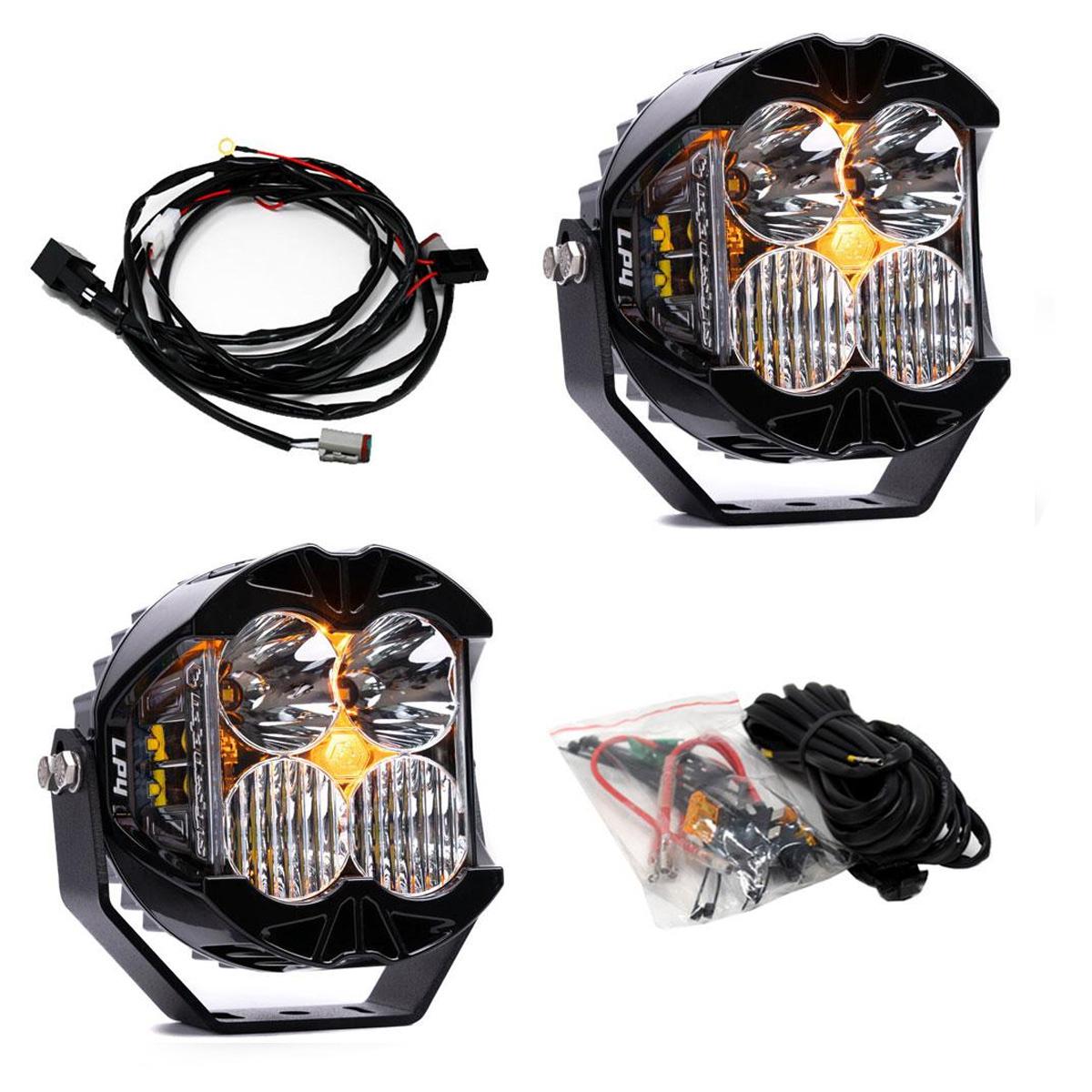

A-pillar mounted lights for peripheral and side illumination (Baja Designs Zone 2).
Type: LED Pod Light
Model: LP4 Pro Driving/Combo
Part Number: 297803
Manufacturer: Baja Designs
Product Page: LP4 Pro Driving/Combo
Quantity: 2 (left and right A-pillars)
Mounting: Motobilt A-pillar light mounts
Power Source: SwitchPros OUTPUT-2
Specifications¶
| Spec | Value |
|---|---|
| Beam Pattern | Driving/Combo |
| Lens | Clear |
| Output | 4,400 lumens each (8,800 total) |
| Draw | 4A each (8A total) |
Wiring¶
Both LP4 Pro pods run on SwitchPros OUTPUT-2 via 2-pin Delphi connectors (power + ground combined per pod).
Wire Routing: SwitchPros (engine bay) to both A-pillars.
Controller: SwitchPros Button 2 (OUTPUT-2) - 8A load on 35A output (23% utilization).
See SwitchPros SP-1200 for wiring details.
Outstanding Items¶
TBD tracker unavailable
Could not reach the GitHub issues API at build time (network or rate limit). Set GITHUB_TOKEN to raise the limit.
Build Tasks¶
- Plan wire routing from SwitchPros to A-pillars
